Saddle Fusion & Socket Fusion for Reliable Pipe Connections

PTS offers professional socket fusion and saddle fusion services for polyethylene (PE) pipes across the UK. Our skilled technicians deliver reliable, leak-proof pipe connections through industry-approved fusion welding techniques.

Saddle Fusion & Socket Fusion for Reliable Pipe Connections

    At Pipe Testing Services (PTS), we understand the critical importance of robust and dependable pipe connections through saddle Fusion and socket Fusion. Whether for water mains, gas lines, or industrial applications. Pipe Fusion welding stands out as an unparalleled solution for joining polyethylene (PE) pipes.

    As a leading nationwide contracting service, we specialise in multiple types of fusion welding techniques. Such as butt fusion, electrofusion, saddle fusion and socket fusion. Here, we’ll detail our process. The intricacies of these methods, their advantages, applications, and our dedication to delivering exceptional saddle and socket fusion welding services across the UK.

    We’ll navigate through the details of both techniques and shed light on how fusion welding services ensure reliability and durability for diverse applications. For trustworthy and efficient services, reach out to us today!

    Saddle Fusion & Socket Fusion

    For polyethylene (PE) pipe systems, these two pipe fusion methods stand out as pivotal techniques for joining pipes. These methods are not only integral to the structural integrity of plumbing and water distribution systems but also ensure the longevity and reliability of the connections they create.

    Socket Fusion

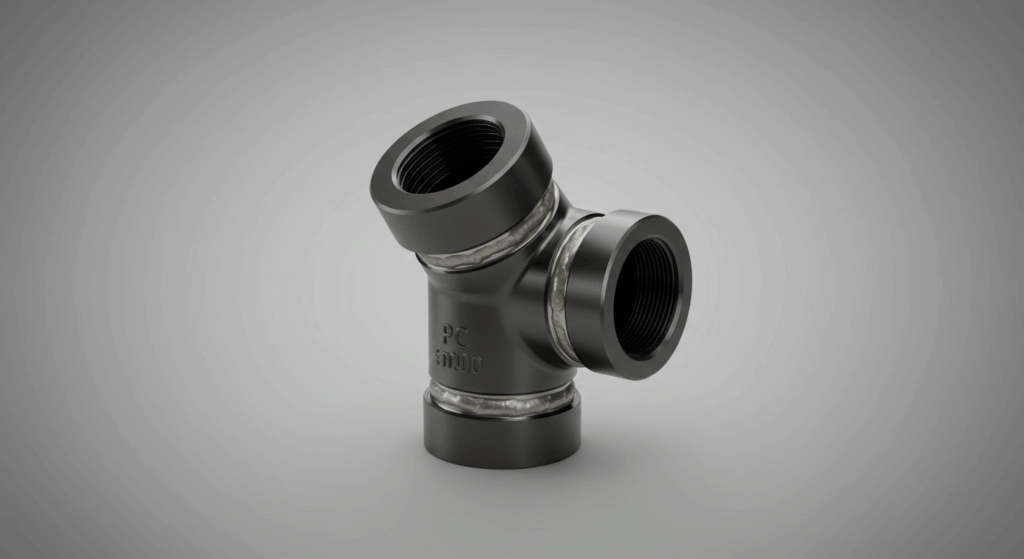

    This technique is used to join smaller diameter polyethylene (PE) pipes by heating and fusing the end of the pipe with a socket fitting like a coupling or elbow. The pipe end and inside of the fitting are heated to a molten state and then joined together under pressure to create a permanent, monolithic bond.

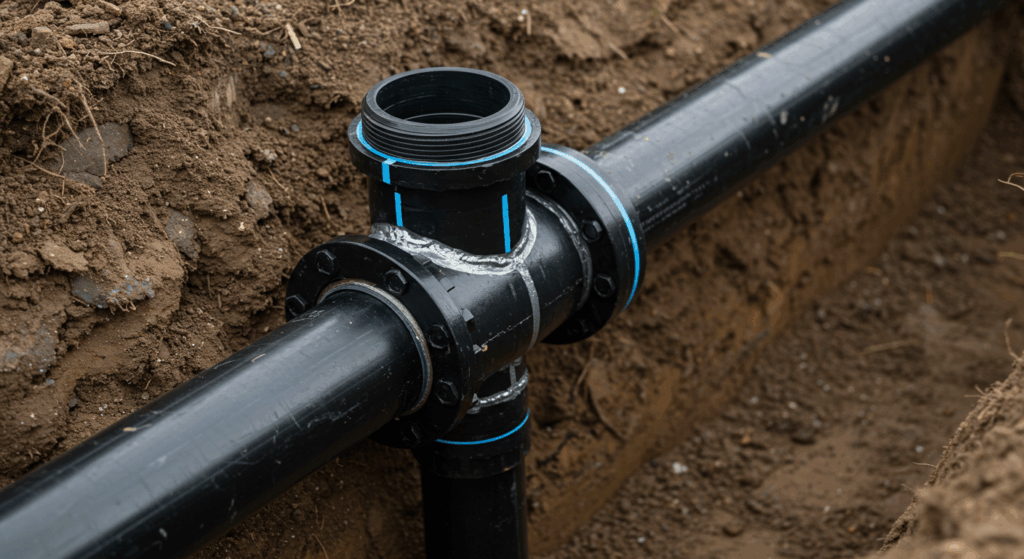

    For larger PE pipes, saddle fusion allows a branch connection to be added onto the main pipeline. A saddle-shaped fitting is heated along with a section of the main pipe. When molten, the heated saddle is wrapped around the pipe and fused together under pressure, creating a leak-free outlet for connecting a new service line.

    Saddle Fusion: Strength on a Larger Scale

    When it comes to larger-diameter polyethylene (PE) pipes, PTS is well-equipped to handle the challenges of fusion welding – a crucial technique for:

    The saddle fusion process at PTS involves:

    • Meticulous Preparation
      • Main pipe and saddle-shaped fitting thoroughly cleaned
      • Ensuring optimal surface conditions for a successful fusion bond
    • Precision Heating
      • Specialised heating tools raise temperatures of both components to their respective fusion points
      • Precise temperature control is paramount to avoid compromising joint integrity
    • Expert Alignment and Fusion
      • Saddle fitting expertly aligned over the main pipe
      • Correct interfacial pressure applied to create a robust, leak-proof fusion bond
      • Bond allowed to cool and solidify for seamless integration

    Saddle fusion is indispensable for a wide range of applications:

    • Water distribution systems
    • Gas pipelines
    • Industrial applications involving larger-diameter PE pipes

    Socket Fusion: Simplicity Meets Strength

    At PTS, we recognise the critical importance of socket fusion for ensuring the integrity of smaller-diameter polyethylene (PE) pipe systems. Our skilled technicians meticulously follow industry-approved procedures to deliver exceptional results:

    • Thorough Preparation
      • Pipe and fitting surfaces are thoroughly cleaned and free from contaminants.
      • Proper alignment of components is ensured.
    • Precise Heating
      • External surface of the pipe and internal surface of the fitting are carefully heated using specialised tools.
      • Precise temperature control ensures both components reach the optimal fusion temperature.
    • Seamless Fusion
      • Once optimal temperatures are achieved, the two components are swiftly joined
      • Correct interfacial pressure is applied to form a robust, leak-proof fusion bond.
    • Homogeneous Joint
      • The fusion bond is allowed to cool and solidify
      • Resulting in a homogeneous, monolithic joint virtually as strong as the parent pipe.

    Socket fusion is ideally suited for:

    Quality Assurance – Pipe Fusion Welding at PTS

    We understand that the success of any pipe fusion project hinges on the quality of the workmanship and adherence to stringent industry standards. That’s why we place a strong emphasis on quality assurance throughout every step of the socket fusion and saddle fusion processes.

    Our technicians undergo rigorous training and certification programs, ensuring that they are well-versed in the latest techniques, safety protocols, and industry best practices. We also maintain a comprehensive quality control program, regularly inspecting our equipment and processes to ensure consistent, reliable results.

    Furthermore, we prioritise open communication with our clients, keeping them informed at every stage of the project. We believe that transparency and collaboration are key to delivering outstanding results that meet and exceed our clients’ expectations.

    What are the Long-term Benefits of Fusion Welded PE Pipe Systems?

    PE pipes joined through fusion techniques can provide 100+ years of reliable service life when properly installed and operated within specifications. Their leak-free, corrosion-resistant nature reduces long-term costs.

    Polyethylene (PE) pipes joined through fusion techniques, such as butt fusion, are known for their long lifetimes and trouble-free operation. These pipes are expected to last up to 100 years when properly installed and operated within specifications. The fusion welding process creates strong, seamless connections that are highly resistant to leaks, offering exceptional long-term reliability. This leak-proof nature of the joints reduces long-term costs.

    Furthermore, PE pipes are resistant to corrosion, which also contributes to their longevity and cost-effectiveness. However, it’s important to note that the quality of the joints and the longevity of the system can be influenced by various factors, including the specific welding procedures used.

    Diverse Applications, Uncompromising Quality

    At PTS, we understand that the reliability and durability of pipe connections are paramount in a wide range of applications. From municipal water distribution systems and residential plumbing to industrial facilities and gas pipelines, our socket fusion and saddle fusion services are tailored to meet the unique demands of each project.

    Whether you require the seamless integration of service lines into a larger water main or the repair of an existing pipeline, our team of skilled technicians has the expertise and experience to deliver outstanding results. We take pride in our ability to work efficiently and effectively, minimising downtime and ensuring that your operations can resume with minimal disruption.

    pipe fusion welding - saddle fusion & socket fusion

    Saddle Fusion & Socket Fusion - (FAQs)

    What are the main advantages of socket and saddle fusion?

    Socket and saddle fusion create leak-proof, monolithic joints that are virtually as strong as the parent pipe material. They require no filler materials and result in a homogeneous connection. These fusion joints are also resistant to vibration, pull-out forces, and temperature fluctuations.

    Fusion techniques like socket and saddle fusion are ideal for thermoplastic pipes like polyethylene (PE), polypropylene (PP), and polyvinyl chloride (PVC). However, they cannot be used on non-thermoplastic pipe materials.

    The actual fusion welding time is relatively quick once the components are heated, usually just a few minutes. However, the overall process including preparation, heating, cooling, and inspection can take 30 minutes to a couple of hours depending on the pipe size.

    Socket fusion is generally limited to PE pipes up to 12 or 16 inches in diameter. Saddle fusion can accommodate larger diameter pipes up to around 48 inches, making it ideal for municipal water mains.

    Completed welds are visually inspected for uniformity and defects. Non-destructive testing methods like guided side bend tests can check for fusion quality. Destructive tests like joint restraint or tensile tests may also be performed.

    No, socket and saddle fusion joints cannot be repaired or re-worked once the cooling phase is complete and the plastic is re-solidified. If defects are found, the joint must be completely cut out and re-done.

    Saddle fusion becomes more critical for larger diameter pipes because the branch outlet area increases significantly. Proper saddle fusion prevents leaks and ensures the integrity of the entire pipeline system.

    Choose PTS for Unparalleled Socket and Saddle Fusion Services

    When it comes to ensuring the long-term integrity and reliability of your polyethylene (PE) pipe systems, trust the experts at Pipe Testing Services. Our commitment to quality workmanship, meticulous attention to detail, and strict adherence to industry best practices set us apart.

    Whether you require socket fusion for smaller diameter water lines or saddle fusion for integrating branch connections on large municipal mains, our team has the expertise to deliver flawless, leak-free fusion welded joints.

    Contact us today to learn more about our socket and saddle fusion services, or to request a free consultation and quote for your upcoming project. Our knowledgeable professionals are ready to assist you in finding the ideal fusion solution, ensuring your systems remain robust, efficient, and leak-free for decades to come.

    Phone – 01922 451646

    Email –

    Address – Unit 27 Birchbrook Industrial Estate, Shenstone, Lichfield, Staffs, WS14 0DJ

    Experience the PTS difference through our specialized socket and saddle fusion capabilities. Allow us to maximise the performance and service life of your critical PE piping infrastructure.
