Specialist Electrofusion Welding Services for PE Pipes
Pipe Testing Services (PTS) provides expert electrofusion welding services across the UK, a cutting-edge technique for joining polyethylene (PE) pipes and fittings. This advanced method creates exceptionally strong, reliable, and leak-proof connections, making it an ideal choice for a wide range of water and gas infrastructure projects, especially for repairs or where access is restricted.
What is Electrofusion Welding?
Electrofusion welding is a fusion process that uses specialised fittings with built-in heating coils. The process involves the following key steps:
- Preparation: The surfaces of the PE pipes and fittings are meticulously cleaned and scraped to remove any oxidation, ensuring a perfect surface for fusion.
- Alignment: The electrofusion fitting (e.g., a coupler or saddle) is precisely aligned and clamped onto the pipe ends.
- Fusion: A specialised control unit is connected to the fitting's terminal pins. It passes a carefully controlled electrical current through the heating coil for a specific, pre-determined time. This melts the plastic on the inside of the fitting and the outside of the pipe.
- Cooling: Once the heating cycle is complete, the joint is allowed to cool under pressure. The molten plastic fully fuses at a molecular level, creating a sturdy, homogenous, and permanently leak-proof connection.
Key Benefits of
Electrofusion Welding
Electrofusion welding offers numerous advantages over traditional pipe joining methods, particularly in challenging site conditions:
Leak-Proof Joints: The fused joints are monolithic and homogenous, completely eliminating the risk of leaks that can occur with mechanical joints.
Strength and Durability: The resulting joint is often stronger than the pipe itself, providing exceptional resistance to pressure and ground movement.
Simplified Installation: As it does not require heavy hydraulic machinery like butt fusion, electrofusion is ideal for repairs in confined spaces or existing trenches.
Versatility: It is an excellent method for joining pipes of different wall thicknesses, connecting fittings like branches and saddles, and for performing tie-in connections.
No Additional Adhesives or Solvents: The process creates a strong bond using heat and fusion alone, reducing environmental contamination risks.
Common Applications of Electrofusion Welding
Our electrofusion welding services cater to a wide range of industries and applications:
- Water and Wastewater Systems: Extensively used for new water distribution networks, mains repairs, and connecting service pipes, ensuring exceptional long-term joint integrity.
- Gas Distribution Networks: A standard and highly trusted method for natural gas pipelines, where leak-proof performance is a critical safety requirement.
- Industrial Piping Systems: Ideal for chemical and process piping where the high chemical resistance of PE pipe is required.
- Trenchless Installations: Often used to make final connections for pipelines installed via methods like trenchless rehabilitation.
Quality Assurance and Data Logging

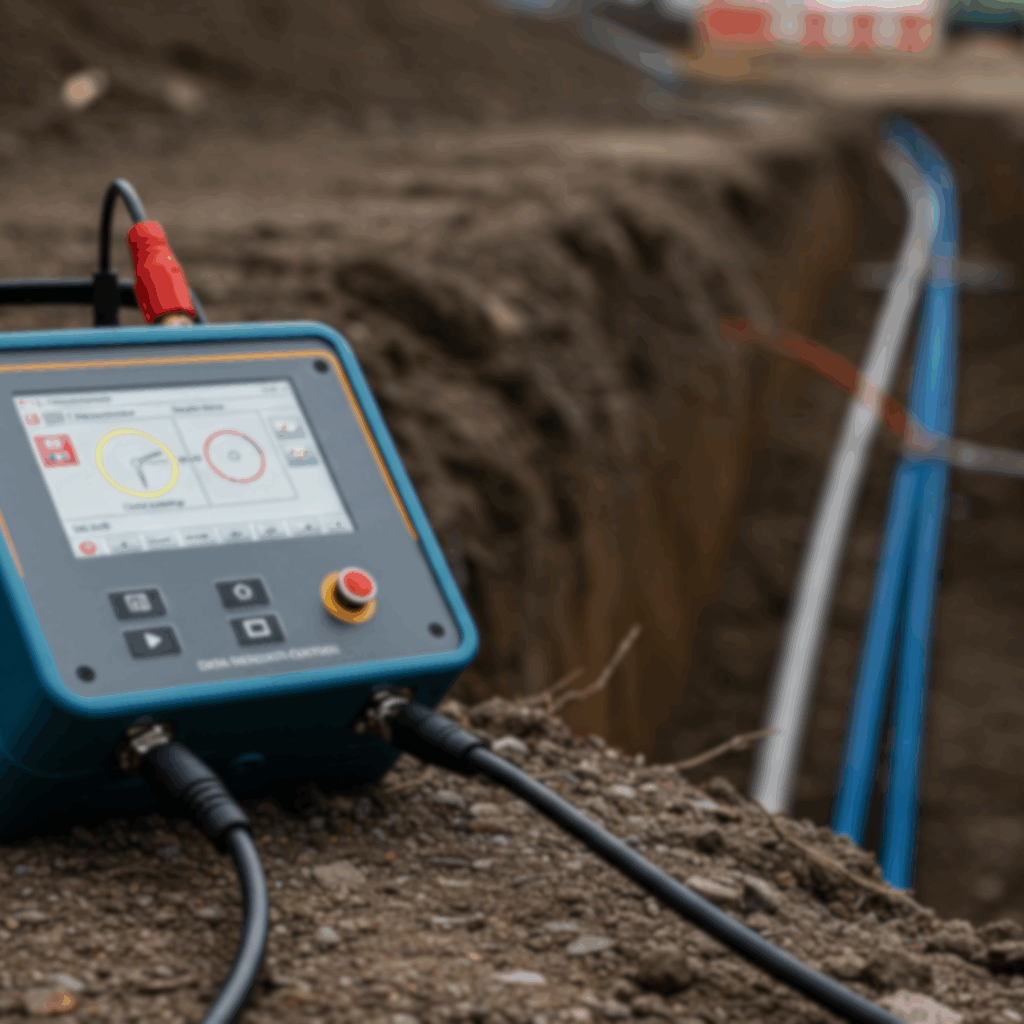

At Pipe Testing Services, we prioritise quality assurance and traceability in every electrofusion welding project. Our modern control boxes feature data logging technology to capture and record critical parameters for each weld, including:
- Fusion and cooling times.
- Applied voltage and current.
- Operator and joint identification.
- Ambient temperature.
This data is invaluable for ensuring compliance with industry standards and provides a permanent quality record for your project handover and future maintenance activities.
Case Study: Electrofusion for a Critical Rising Main Connection
We were recently commissioned by a long-standing client to install a rising main and connect it to a pumping station. Ensuring a secure, leak-proof joint was crucial for uninterrupted water supply. For this critical project, PTS deployed a team of highly experienced engineers specialising in electrofusion welding techniques. They meticulously joined high-density polyethylene (HDPE) pipes, creating a robust monolithic joint stronger than the pipes themselves. The outcome was a seamless main connection to the pumping station, with leak-free joints capable of withstanding demanding operating conditions for years to come.
Read On.
Quality Assurance and Data Logging
We champion sustainable practices in electrofusion welding, minimising waste, emissions, and resource use. Unlike other methods using adhesives or solvents, electrofusion welding creates strong, leak-proof joints without additional materials or chemicals. This reduces environmental contamination risks while enhancing joint strength. Additionally, we utilise energy-efficient equipment, implement strict waste management protocols, and promote the use of recycled and recyclable PE pipes, further contributing to a circular economy.
Choose Pipe Testing Services for Your Electrofusion Welding Needs
Pipe Testing Services is your trusted partner for all electrofusion welding requirements across the UK. With our nationwide contracting service, state-of-the-art equipment, and highly trained professionals, we deliver unparalleled electrofusion welding solutions tailored to your specific project needs. For a comprehensive overview of our capabilities, please see our main Pipe Fusion Welding Services page.
Contact us today to discuss your project requirements or to schedule a consultation with our experts.
- Phone – 01922 451646
- Email – enquiries@pipetestingservices.co.uk
- Address – Unit 27 Birchbrook Industrial Estate, Shenstone, Lichfield, Staffs, WS14 0DJ
Electrofusion Welding FAQs
What is the typical size range for electrofusion welding?
At Pipe Testing Services, our electrofusion welding capabilities extend from 20mm up to 800mm pipe diameters, catering to a wide array of applications and project sizes.
Can electrofusion welded joints be repaired or modified?
Yes, electrofusion welded joints can be easily repaired or modified through the installation of additional electrofusion fittings, such as branch connections or repair couplings. This flexibility allows for seamless integration with existing infrastructure or project-specific requirements.
Are electrofusion welded joints suitable for underground applications?
Absolutely. Electrofusion welded joints are extensively used in underground piping systems, such as water mains, gas distribution networks, and telecommunication infrastructure. Their leak-proof nature and durability make them ideal for buried applications.
Can electrofusion welding be performed in adverse weather conditions?
While electrofusion welding can be performed in various weather conditions, extreme temperatures or precipitation may affect the welding process. Our teams are trained to assess site conditions and take appropriate measures, such as using shelters or climate-controlled environments, to ensure optimal electrofusion welding results.
How long does an electrofusion weld take to complete?
The duration of an electrofusion weld depends on factors such as pipe diameter, ambient temperature, and the specific welding parameters. Typically, electrofusion welds may require 20-45 minutes to complete, including preparation, fusion, and cooling time.
Can electrofusion welding be used with trenchless pipe installation techniques?
Yes, electrofusion welding is compatible with various trenchless pipe installation techniques, such as horizontal directional drilling (HDD), pipe bursting, pipe ramming, and slip-lining. Our electrofusion welding expertise allows us to create continuous, leak-proof pipe strings, facilitating efficient installation via trenchless methods.
